Design of Plate Packaging Structure
The disc packaging box structure is a paper box structure formed by folding, biting, inserting, or bonding around the cardboard. This type of packaging box usually has no changes at the bottom of the box, and the main structural changes are reflected in the box body. Disk packaging boxes are generally smaller in height and have a larger display area after opening. This paper box packaging structure is often used for packaging goods such as textiles, clothing, shoes and hats, food, gifts, handicrafts, etc. Among them, the most common forms are the sky cover and airplane box structures.

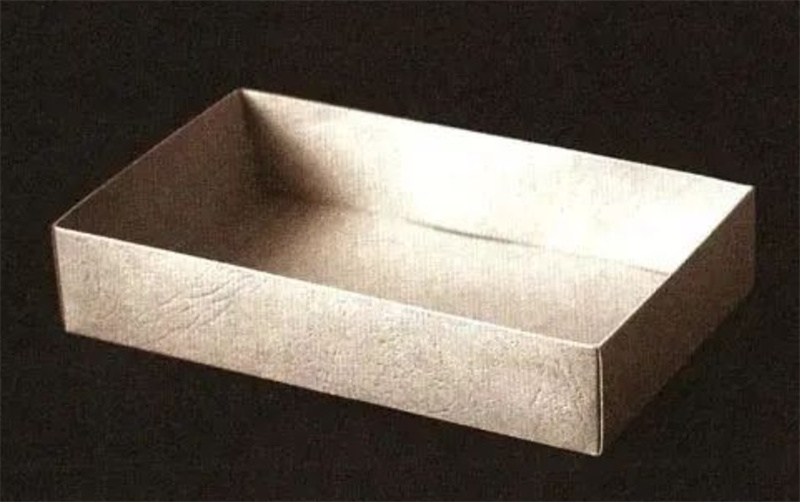

1. The main forming methods of disc packaging boxes: Do not insert assembly & No bonding or locking, easy to use.

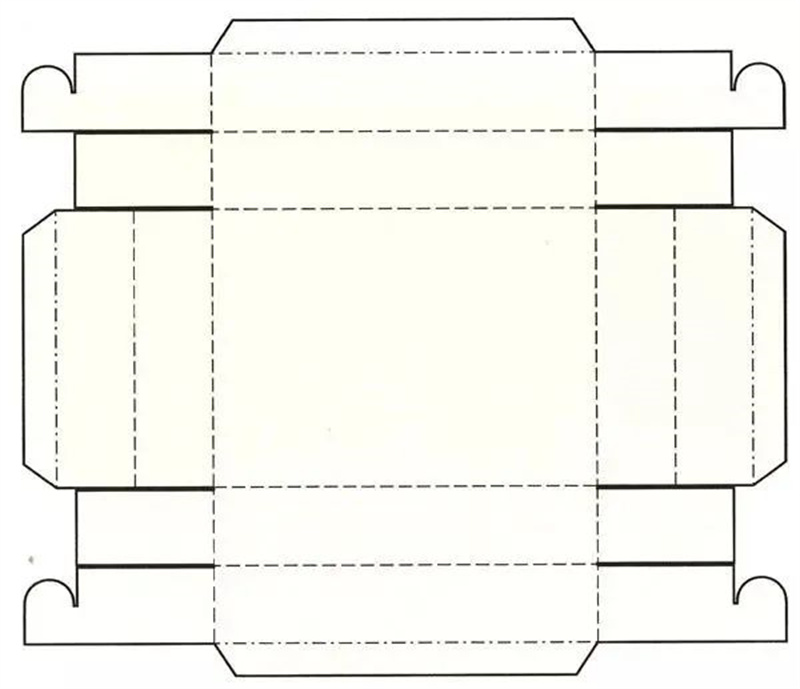

Unfolded diagram of assembly structure I without insertion

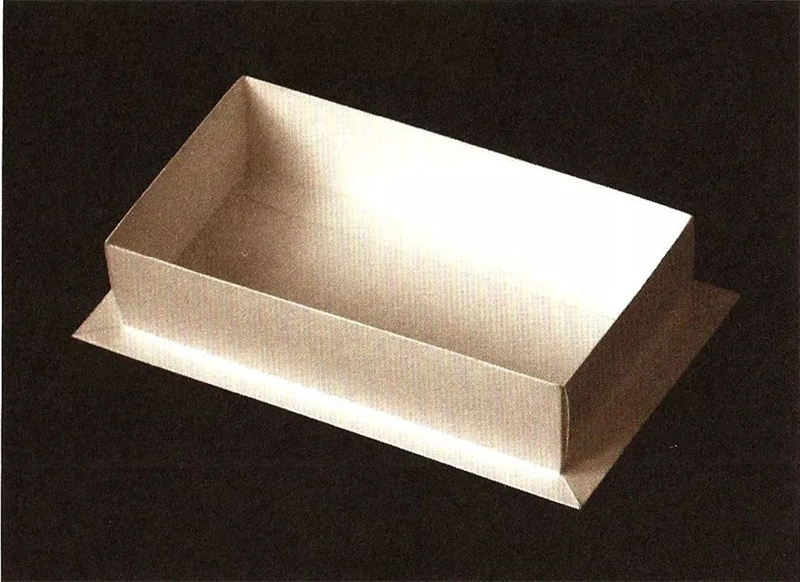

2 Locking assembly

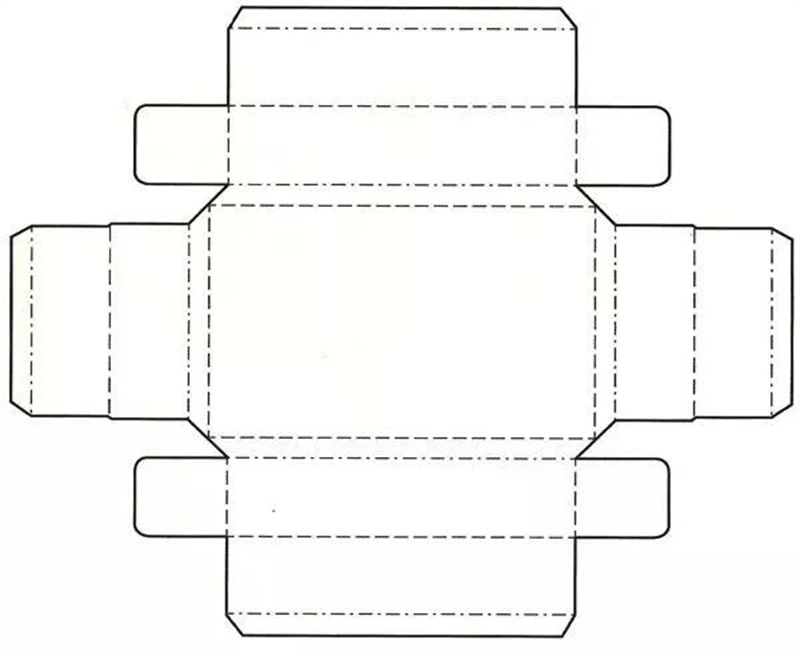

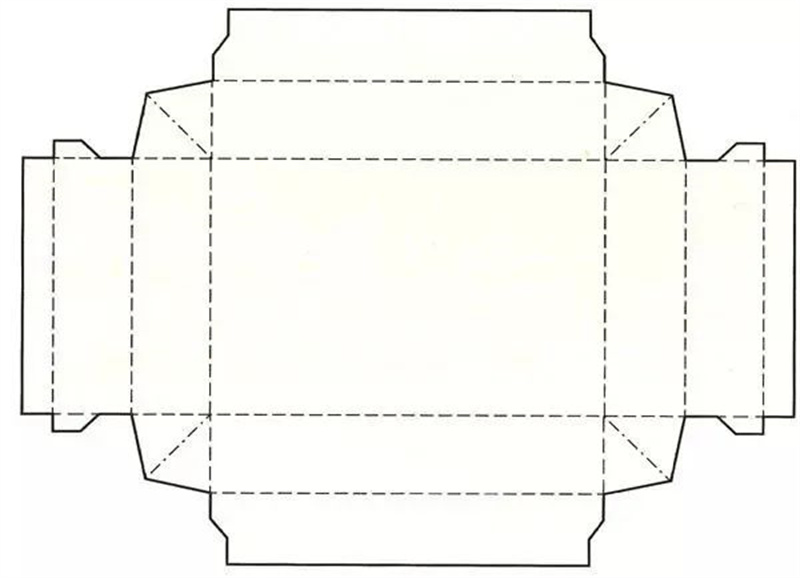

Unfolded diagram of locking assembly structure

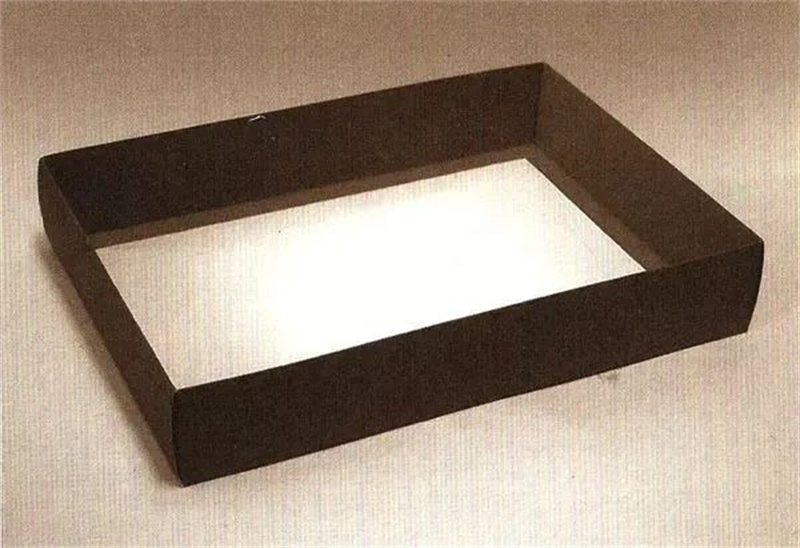

3. Pre-adhesive assembly
The main structure of disc packaging boxes
The box body is composed of two independent disc shaped structures that cover each other, and is commonly used for packaging goods such as clothing, shoes, and hats. On the basis of the disc packaging box, one side is extended to be designed as a swing cover, which has a structural feature similar to the swing cover of a tube packaging box.

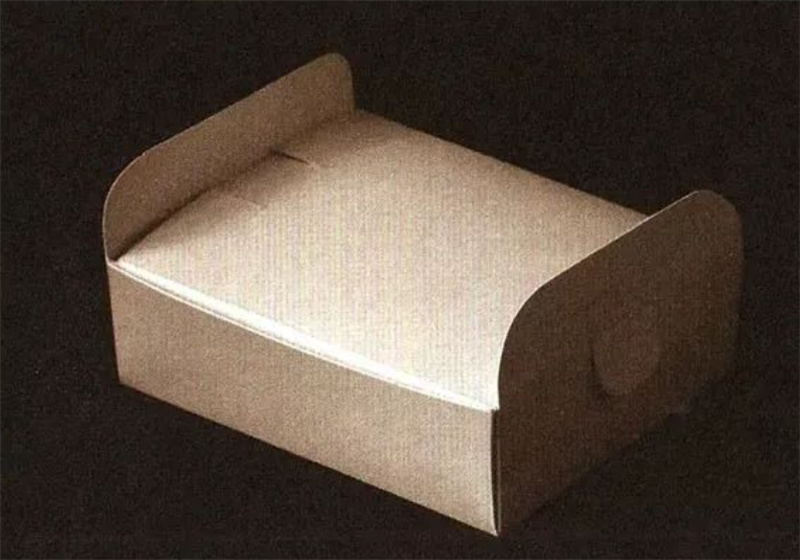

1. Swing cover

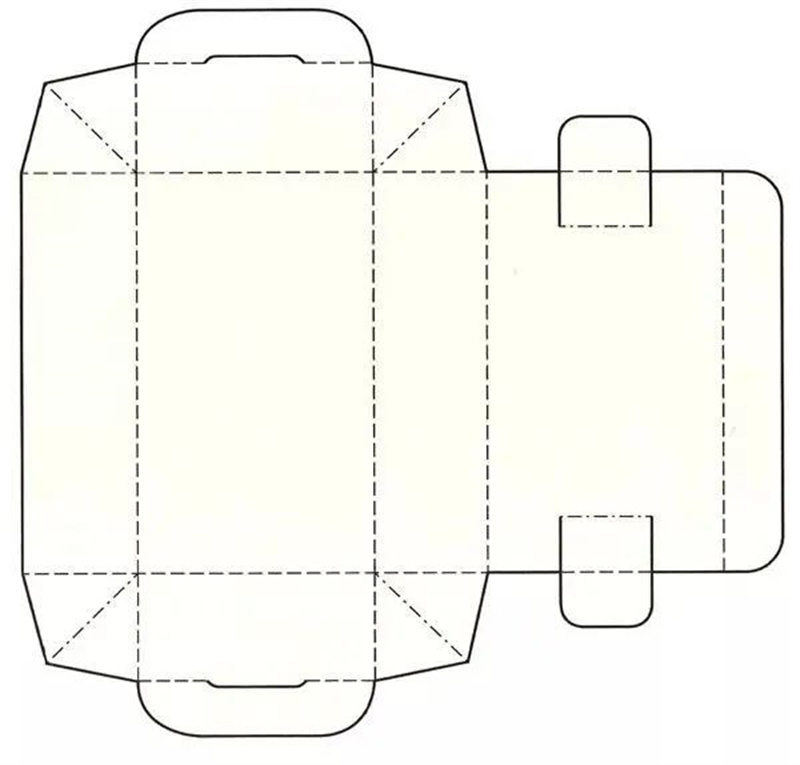

Unfolded diagram of trapezoidal covered structure
2. Book style
3. Other styles
Structural expansion diagram of triangular disc packaging box
